المعامل الطلابيةعملية 5معمل علم المواد

تجربة التوصيل الكهربائي في أشباة الموصلات

Experiment: Electrical Conduction in Semiconductors

التوصيل الكهربائي في أشباه الموصلاتElectrical Conduction in Semiconductors

أدخل درجة الحرارة والجهد والتيار، وتحسب الأداة الموصلية ومنحنى ln σ مقابل 1/T، ومنه طاقة الفجوة وتركيز الحاملات الذاتي، وتميّز المدى الذاتي من مدى الشوائب.Enter temperature, voltage and current; the tool computes the conductivity and the ln σ versus 1/T plot, and from it the band gap and the intrinsic carrier concentration, and separates the intrinsic range from the impurity range.

الهدف والأجهزةObjective and apparatus

دراسة تغيّر الموصلية الكهربائية لشبه موصل مع درجة الحرارة، وتعيين طاقة الفجوة Eg.

To study how the electrical conductivity of a semiconductor changes with temperature, and to determine the energy gap Eg.

  • عينة شبه موصل (جرمانيوم أو سيليكون نقي) على لوحة تثبيت
  • سخان أو لوحة تحكم بدرجة الحرارة
  • مقياس حرارة أو مزدوج حراري
  • مصدر تغذية
  • أميتر لقياس التيار
  • فولتميتر لقياس الجهد على العينة
  • أسلاك توصيل وحوامل العينة
  • Semiconductor sample (pure germanium or silicon) on a carrier board
  • Heater or temperature-controlled setup
  • Thermometer or thermocouple

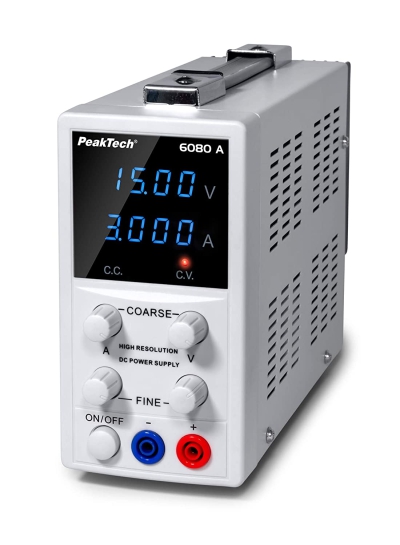

  • Power supply
  • Ammeter for the current
  • Voltmeter for the voltage across the sample
  • Connecting wires and sample holders

الأساس النظريTheory

في شبه الموصل النقي (الذاتي) تنشأ حاملات الشحنة بالتسخين: يعبر الإلكترون فجوة الطاقة إلى حزمة التوصيل ويترك فجوة موجبة في حزمة التكافؤ، فيتحرك الاثنان معاً. عدد هذه الأزواج ni يزداد أُسياً مع الحرارة، فتزداد الموصلية:

In a pure (intrinsic) semiconductor, charge carriers are created by heating: an electron crosses the energy gap into the conduction band and leaves a positive hole in the valence band, and both move. The number of these pairs ni grows exponentially with temperature, so the conductivity rises:

$$\sigma=n_i\,e\,(\mu_n+\mu_p),\qquad n_i\propto T^{3/2}\exp\!\left(-\frac{E_g}{2k_BT}\right)$$
(1)

والعامل الأُسي يغلب تغيّر T3/2 والحركية، فيكون رسم ln σ مقابل 1/T خطاً مستقيماً تقريباً ميله سالب:

The exponential factor dominates the change of T3/2 and of the mobility, so the plot of ln σ against 1/T is nearly a straight line with a negative slope:

$$\ln\sigma=\ln\sigma_0-\frac{E_g}{2k_B}\cdot\frac{1}{T}\;\Rightarrow\;E_g=-2k_B\times\text{slope}$$
(2)

والموصلية من القراءات وأبعاد العينة، حيث L المسافة بين نقطتي قياس الجهد وA مساحة المقطع:

The conductivity follows from the readings and the sample dimensions, where L is the distance between the voltage contacts and A the cross-section:

$$\sigma=\frac{I\,L}{V\,A},\qquad A=w\,d$$
(3)

الثوابت (CODATA 2018): kB = 8.617333262×10⁻⁵ eV/K، e = 1.602176634×10⁻¹⁹ C. T بالكلفن دائماً.

Constants (CODATA 2018): kB = 8.617333262×10⁻⁵ eV/K, e = 1.602176634×10⁻¹⁹ C. T is always in kelvin.

خطوات التجربةProcedure

  1. صِل عينة شبه الموصل في الدائرة مع الفولتميتر والأميتر.
  2. سخّن العينة تدريجياً مع مراقبة درجة حرارتها.
  3. قِس الجهد على العينة والتيار المار فيها عند درجات حرارة مختلفة، وسجّلهما.
  4. احسب الموصلية لكل قراءة من σ = I L / (V A).
  5. ارسم ln σ مقابل 1/T لتحصل على خط مستقيم.
  6. عيّن طاقة الفجوة من الميل: Eg = −2kB × slope.
  1. Connect the semiconductor sample in the circuit with the voltmeter and ammeter.
  2. Heat the sample gradually while monitoring its temperature.
  3. Measure and record the voltage across the sample and the current through it at various temperatures.
  4. Calculate the conductivity of each reading from σ = I L / (V A).
  5. Plot ln σ against 1/T to obtain a straight line.
  6. Determine the energy gap from the slope: Eg = −2kB × slope.

لوحة التسخين تسخن كثيراً؛ لا تلمس العينة ولا الحامل أثناء القياس وبعده مباشرة. أبقِ التيار صغيراً (بضعة ميلي أمبير) حتى لا تسخن العينة بمرور التيار نفسه، وانتظر استقرار الحرارة قبل كل قراءة.

The heating board gets very hot; do not touch the sample or the holder during and right after the measurement. Keep the current small (a few milliamperes) so that the current itself does not heat the sample, and wait for the temperature to settle before each reading.

إدخال البياناتData entry

تلزم للموصلية فقط؛ طاقة الفجوة لا تعتمد عليها. اتركها فارغة لتُحسب الموصلية الكلية I/VNeeded for the conductivity only; the band gap does not depend on them. Leave blank to use the conductance I/V
تلزم لحساب تركيز الحاملات الذاتي من الحركيةNeeded to compute the intrinsic carrier concentration from the mobility
اختياري: لعينة مطعَّمة استبعد القراءات الباردة الواقعة في مدى الشوائب؛ الأداة تقترح قيمةOptional: for a doped sample exclude the cold readings in the impurity range; the tool suggests a value
#T (°C)V (V)I (mA)σ (S/m)10³/T (K⁻¹)
لصق بيانات أو تحميل ملف CSVPaste data or load a CSV file
